HP

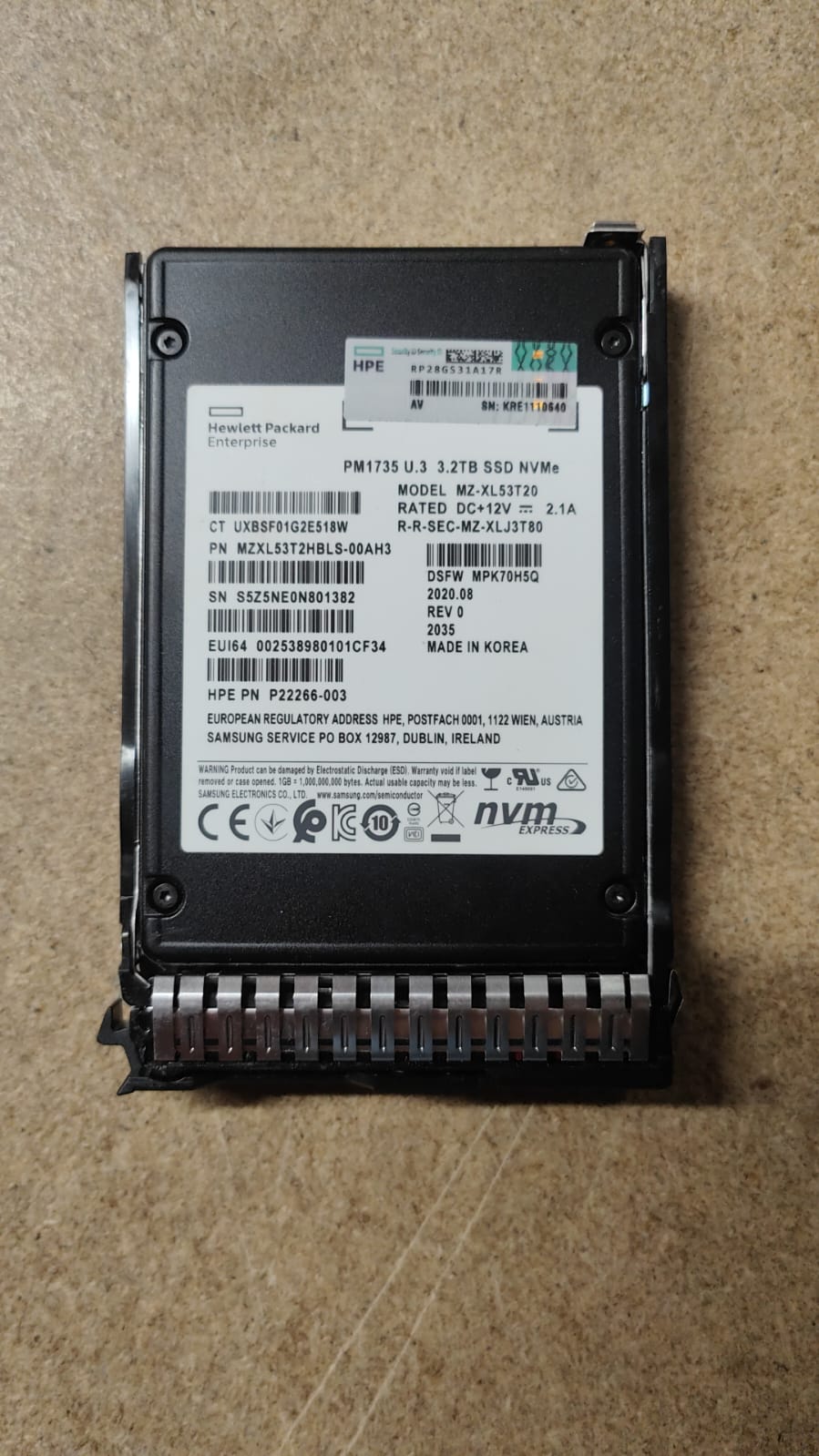

HPE P22270-B21 NVMe 2.5" 3.2TB SSD SAS G9-G10 Hard Drive PM1735

$596.70

In stock: 1

HPE P22270-B21 NVMe 2.5" 3.2TB SSD SAS G9-G10 Hard Drive PM1735

Primary Use Case: Mixed-use (MU) workloads requiring balanced read/write performance and high IOPS for transaction-heavy environments like databases and virtual desktops.

Form Factor and Interface: 2.5-inch SFF (Small Form Factor) with NVMe over PCIe Gen4 x4 lanes (U.3 connector) for superior bandwidth compared to SAS/SATA.

Endurance and Reliability: Rated for 3 Drive Writes Per Day (DWPD) over 5 years, with over 3.35 million hours of MTBF; includes HPE SmartSSD Wear Gauge for lifespan monitoring and full data path error detection.

Warranty and Support: Standard 3-year HPE warranty; hot-swap capable with status LEDs (e.g., do-not-remove icon) to prevent data loss.

Compatibility: HPE ProLiant DL/ML Gen9-Gen10+ servers (e.g., DL360/380 Gen10); backward compatible with Gen8 in some configurations.

OEM Integration: Bundled in HPE Smart Carrier NVMe tray (PN: 727695-001 or 651699-003) for seamless server integration.

| Category | Specification
| Capacity | 3.2TB (3200GB) |
| Interface/Protocol | NVMe 1.3 / PCIe 4.0 x4 (U.3 connector) |
| NAND Type | Samsung V-NAND TLC (3D Triple-Level Cell) Controller | Samsung PM1735 Sequential Read | Up to 8000 MB/s Sequential Write | Up to 3800 MB/s Random Read IOPS | Up to 1,500,000 (4KB QD128) Random Write IOPS | Up to 200,000 (4KB QD128) Endurance (DWPD) | 3 (Drive Writes Per Day for 5 years) Power Consumption | Active: ~10–12W; Idle: ~5W MTBF | 2,500,000 hours
Encryption | None (optional FIPS variant available) Firmware | Digitally Signed (DS)
Form Factor | 2.5-inch SFF (15mm height)
Weight | ~70g (drive only)
|Operating Temperature | 0°C to 70°C (32°F to 158°F)
Part Numbers | HPE Option: P22270-B21
Spare: P26415-001
Assembly: P22266-003
Samsung: MZXL53T2HBLS-00AH3 |

HPE P22270-B21 NVMe 2.5" 3.2TB SSD SAS G9-G10 Hard Drive PM1735 2nd :: Alt () Other /P22266-003 MZXL53T2HBLS-00AH3 P26415 /

HPE P22270-B21 NVMe 2.5" 3.2TB SSD SAS G9-G10 Hard Drive PM1735 2nd :: Alt () Other /P22266-003 MZXL53T2HBLS-00AH3 P26415 /

$596.70

$596.70
