IBM

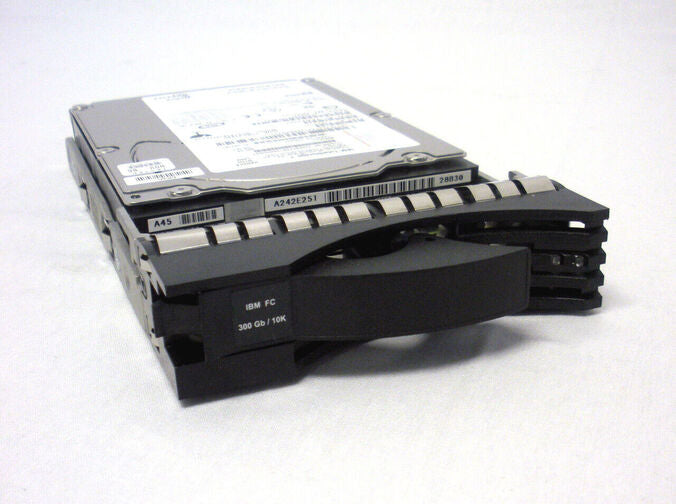

39M4597 IBM 300GB 10K 3.5inch FC Hog Plug Hard Disk Drive 39M4597 inc. tray

$54.40 $52.70

In stock: 107

• The IBM 300GB 10K 3.5-inch FC Hot Plug Hard Disk Drive 39M4597 is a high-performance enterprise hard disk drive that delivers rapid data access and reliable throughput for legacy storage virtualization in demanding SAN environments.
• This drive functions as a hot-plug Fibre Channel storage module, enabling low-latency I/O and single-port connectivity for high-availability applications like databases and transaction processing in shared storage fabrics.
• It is typically deployed in enterprise data centers utilizing IBM System Storage DS series arrays, such as DS4700 and DS4800 controllers, where it supports scalable block-level storage for virtualization, backups, and consolidated workloads.
• The IBM 39M4597 provides strong performance with a 10,000 RPM spindle speed and 4Gbps single-port Fibre Channel interface, achieving sustained transfer rates up to 125 MB/s and average seek times around 4 ms for optimized high-IOPS operations.
• Reliability is ensured by a 1.6 million-hour MTBF, advanced ECC error correction, and rotational vibration tolerance, making it suitable for 24/7 operations in multi-drive enclosures with minimal failure risks.
• Available in new or certified refurbished conditions, refurbished units are fully tested to IBM standards for restored performance and compatibility with legacy DS firmware.
• IBM offers a 3-year limited warranty with extended service contracts, and the model includes eco-friendly elements like efficient power management and RoHS compliance to align with sustainable data center practices.
• As an IBM-branded 39M4597 model based on the Hitachi Ultrastar C10K900 HUS154030VLS300 OEM, it ensures seamless integration within IBM DS series ecosystems for enhanced storage performance.

→ Features & Key Features

• 300GB high-performance capacity
• 10,000 RPM spindle for low latency
• 4Gbps single-port Fibre Channel interface
• 64MB cache buffer for I/O acceleration
• Hot-plug design with IBM LFF tray
• Rotational vibration safeguards for arrays
• ECC error correction for data integrity

→ Compatibility & System Use

• IBM System Storage DS4700, DS4800 controllers
• DS4000 series disk enclosures (EXP810)
• 4Gbps FC-AL switches and HBAs
• Fits 3.5-inch LFF hot-swap bays
• Supports RAID 0, 1, 3, 5, 6, 10, 50 via DS controllers

→ Use Cases

• OLTP databases and transaction servers
• Virtualization storage pools
• High-IOPS file caching and serving
• SAN-based backups and replication
• Legacy tier-1 performance in DS fabrics

→ Benefits

• Up to 125 MB/s sustained throughput
• Superior IOPS for demanding apps
• High MTBF for extended uptime
• Low power draw in enterprise racks
• Proven endurance for 24/7 virtualization

Model / Part Number: IBM 39M4597 / OEM: Hitachi HUS154030VLS300
Interface / Connector Type: Fibre Channel 4Gbps (Single Port, 40-pin)
Capacity / Speed / Frequency: 300GB / Up to 125 MB/s / 10,000 RPM
Form Factor: 3.5-inch LFF
Spindle Speed (RPM): 10,000
Sector Format / Firmware Info: 512e / IBM-certified Hitachi firmware (DS optimized)
Power Requirements: Idle: ~6.5W / Active: ~10.0–12.0W

IBM 300GB 10K 3.5inch FC Hog Plug Hard Disk Drive 39M4597 2nd :39M4597: Alt () Other //
