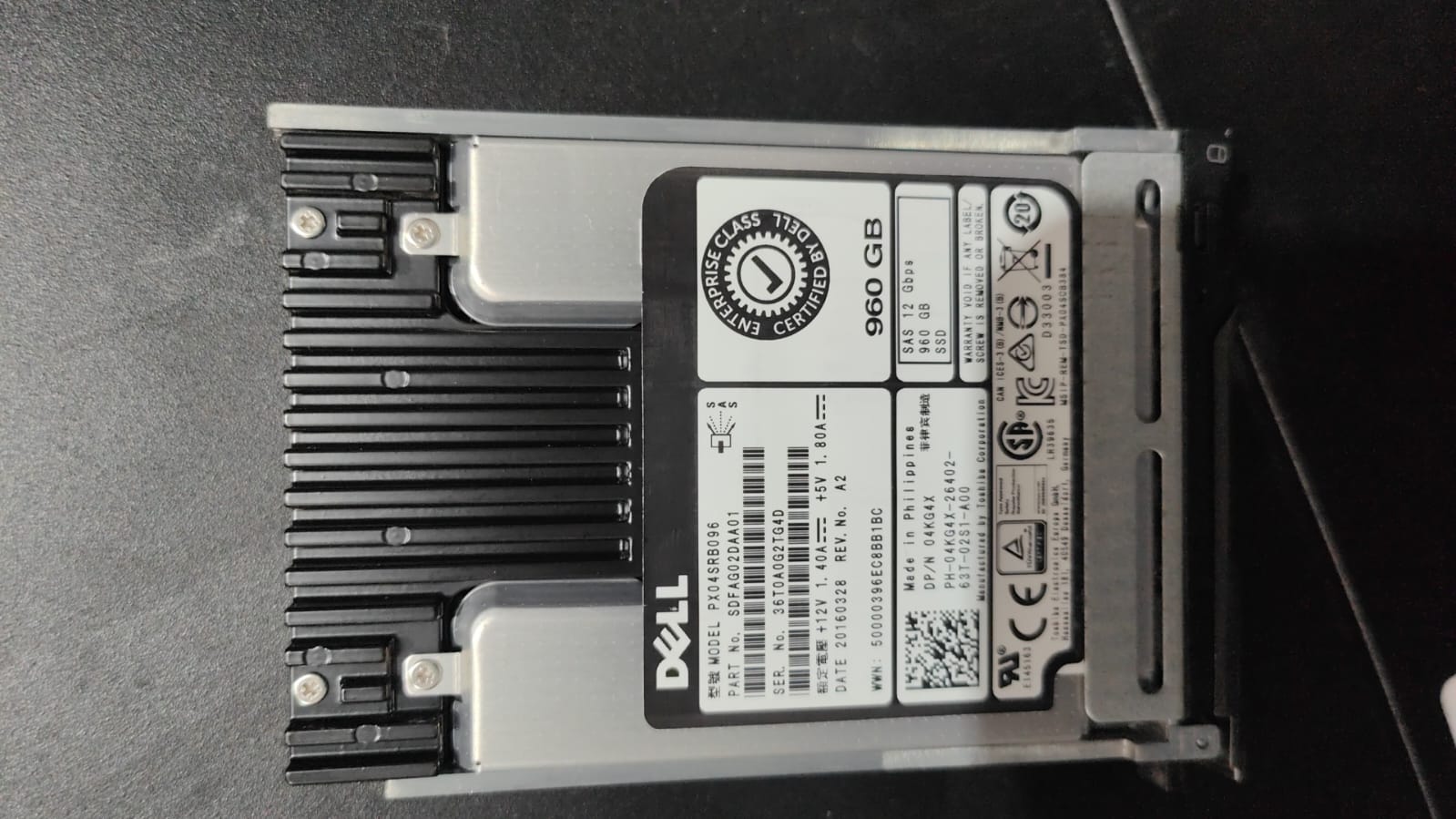

DELL 960GB 12G SAS 2.5 SFF SSD

Capacity: 960 GB

Interface: SAS 12 Gbps (dual-port, backward compatible with 6 Gbps)

Sequential Read Speed: Up to ~1050–1100 MB/s (typical for PX04SRB series)

Sequential Write Speed: Up to ~800–900 MB/s

Random Read IOPS (4K QD32): Up to ~140,000–160,000 IOPS

Random Write IOPS (4K QD32): Up to ~30,000–50,000 IOPS (read-intensive profile)

Endurance: ~1 DWPD over 5 years (typical ~1,700–1,800 TBW)

Power Loss Protection: Yes (capacitor-backed to flush cache)

Cache Buffer: Onboard DRAM + flash cache management

Sector Format: 512e (512-byte emulation / Advanced Format)

MTBF: ~2 million hours (enterprise rating)

Power Consumption: Idle ≈2–3 W / Active ≈5–8 W

Acoustics: Silent (no moving parts)

Operating Temperature: 0°C to 70°C (commercial grade)

Form Factor: 2.5-inch SFF (15mm height) with Dell hot-swap carrier/tray

Carrier Type: Dell-specific 2.5" tray (black plastic/metal with blue latch for PowerEdge Gen13+)
